Engrenarium Planetary Gear Simulation Software
Engrenarium is planetary gear simulation software for mechanical engineering education, research, transmission analysis, and visualization of planetary gear systems.
Online preview
Engrenarium includes an online version with basic features so you can preview the interface and core behavior before using the full software.
Download
Current version: 1.2.4. Planetary gear simulation software package available for Windows x64.
About Engrenarium
Engrenarium helps students, researchers, and engineers explore planetary gear trains, kinematics, and transmission design with interactive visualization software.
- Teaching planetary gear systems Allows visual demonstration of operating principles and kinematic relationships in planetary systems.
- Visualization of complex mechanisms Makes it easier to understand the interaction between sun, planets, and ring gear in different configurations.
- Exploration of design configurations Makes it possible to quickly test different gear arrangements and parameters.
- Preliminary transmission analysis Helps with the initial evaluation of planetary transmission architectures.
- Simulation of multiple planetary stages Allows the study of systems with several planetary sets in series.
- Generation of models and technical files Allows exporting geometric representations for use in documentation or other software.
- Research support tool Can be used in the investigation and analysis of gear configurations in academic projects.
- Support for documenting laboratory projects Helps record and illustrate mechanisms studied in technical and academic activities.
Preview

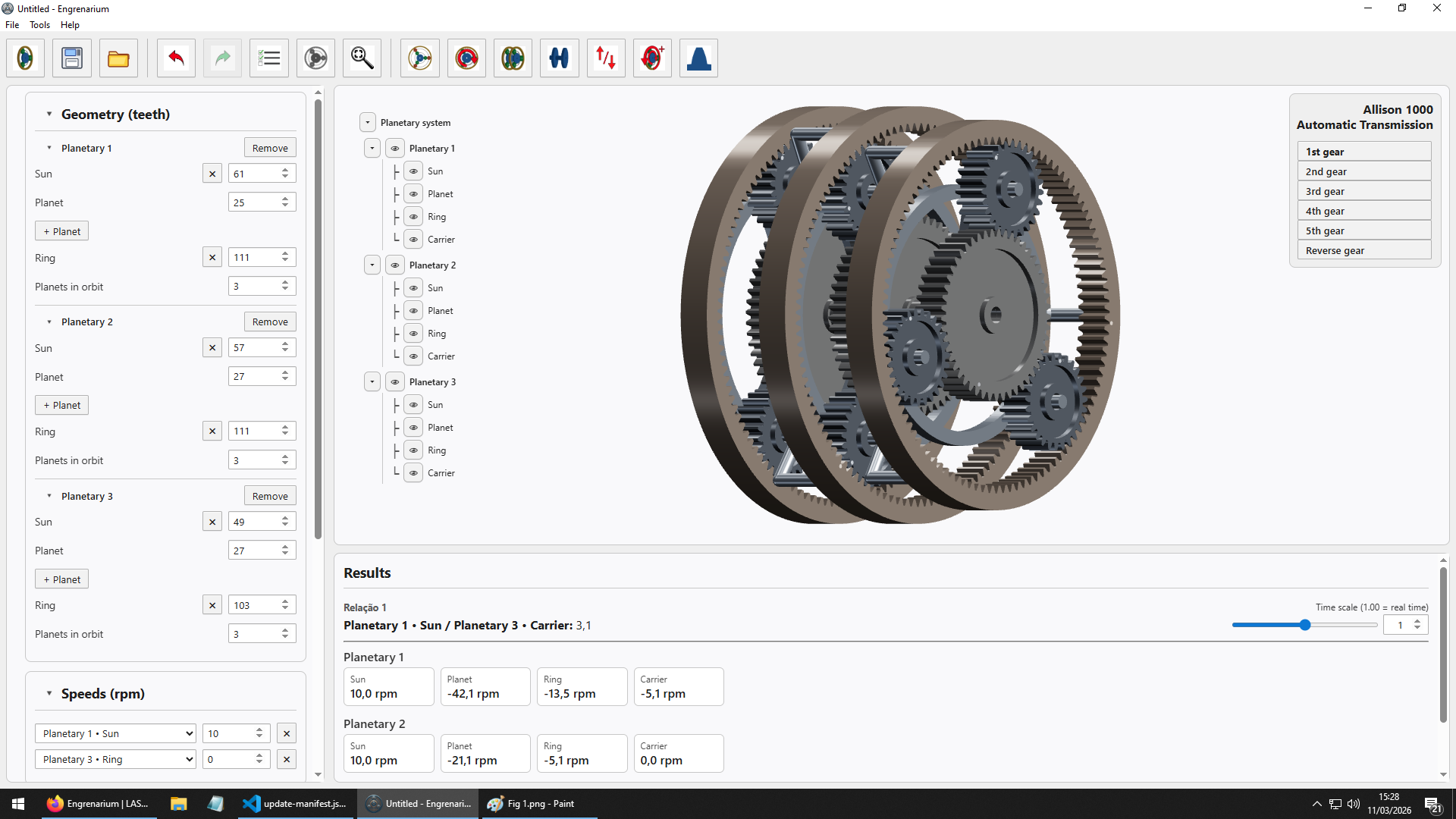

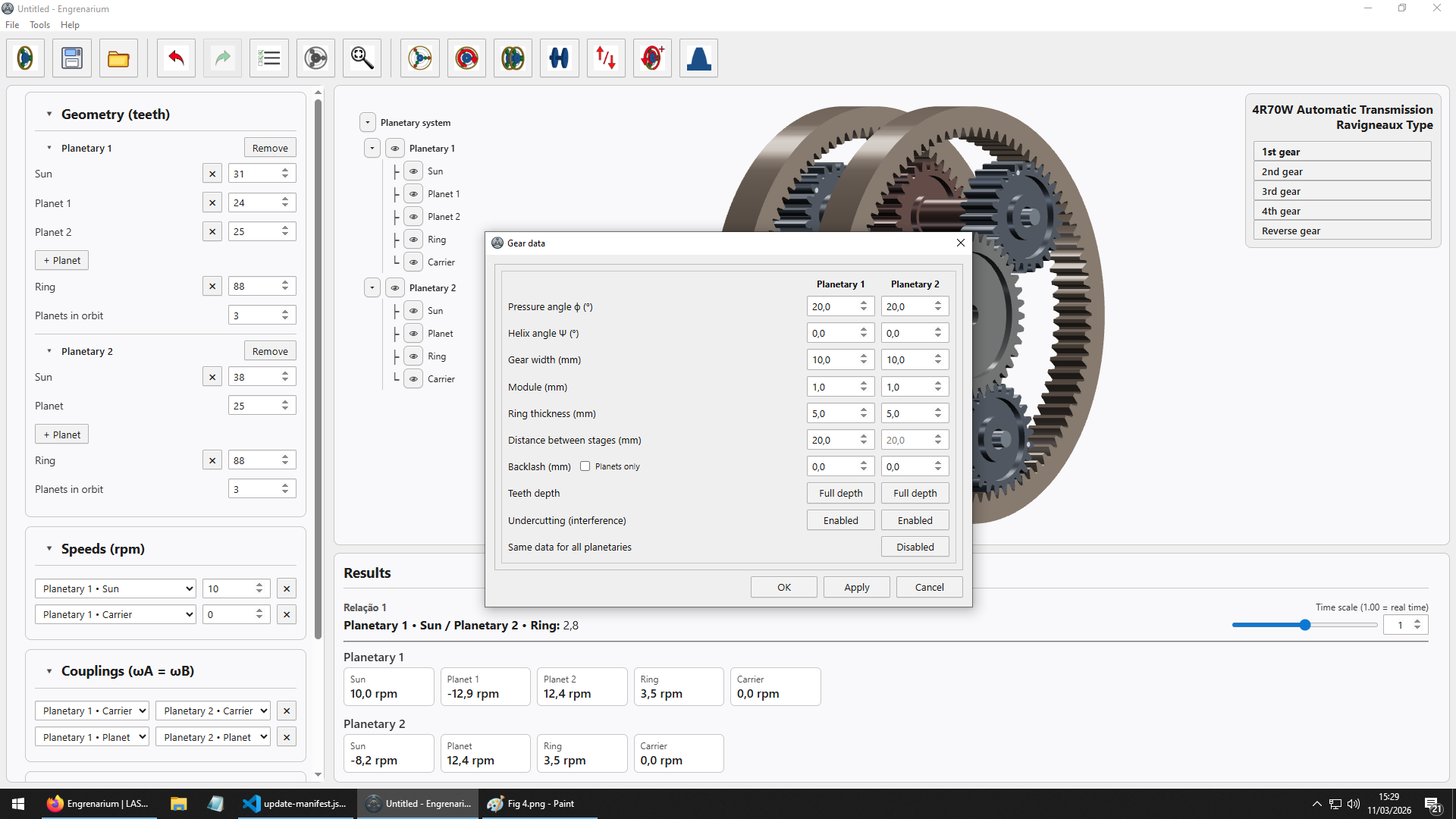

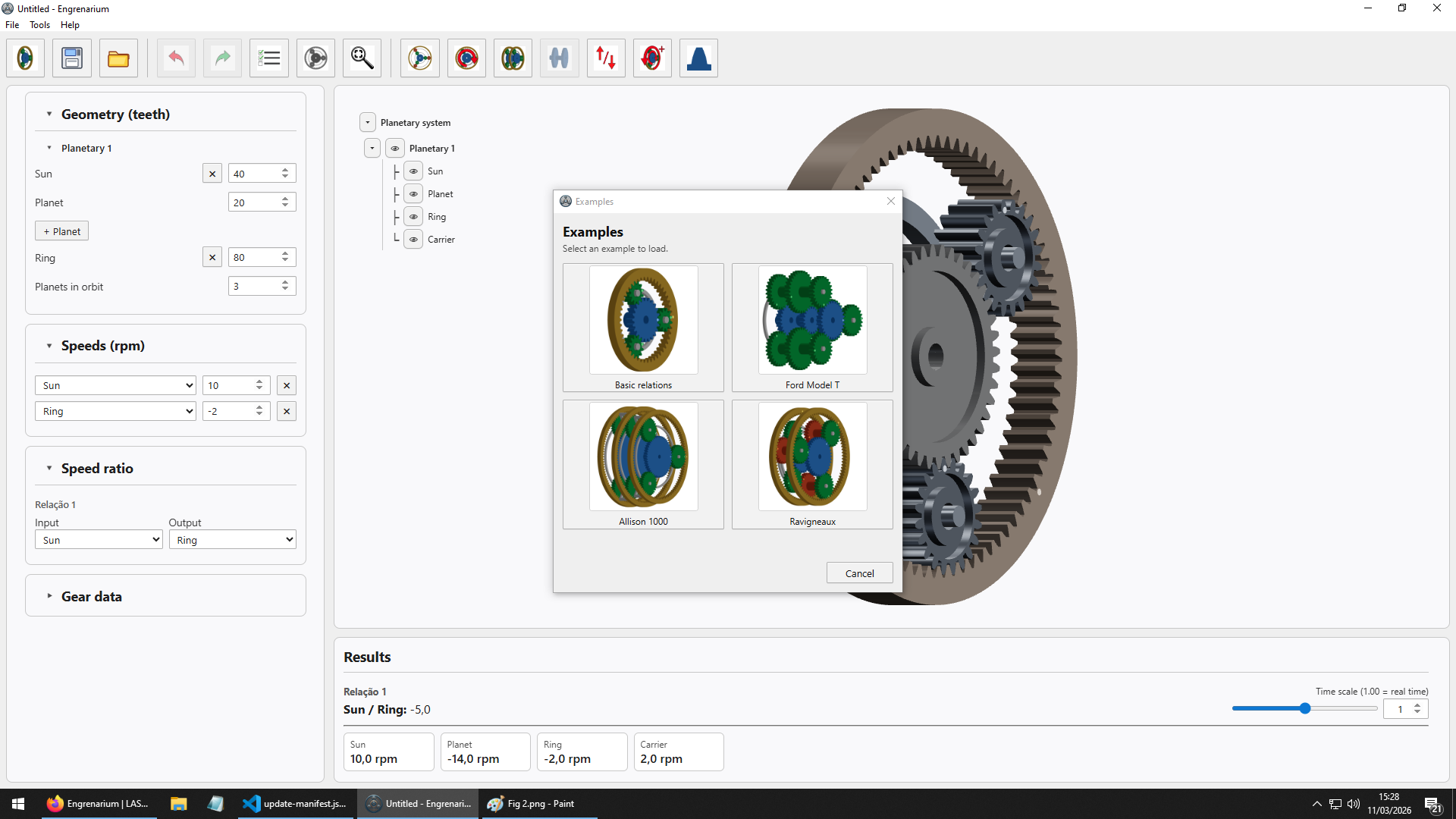

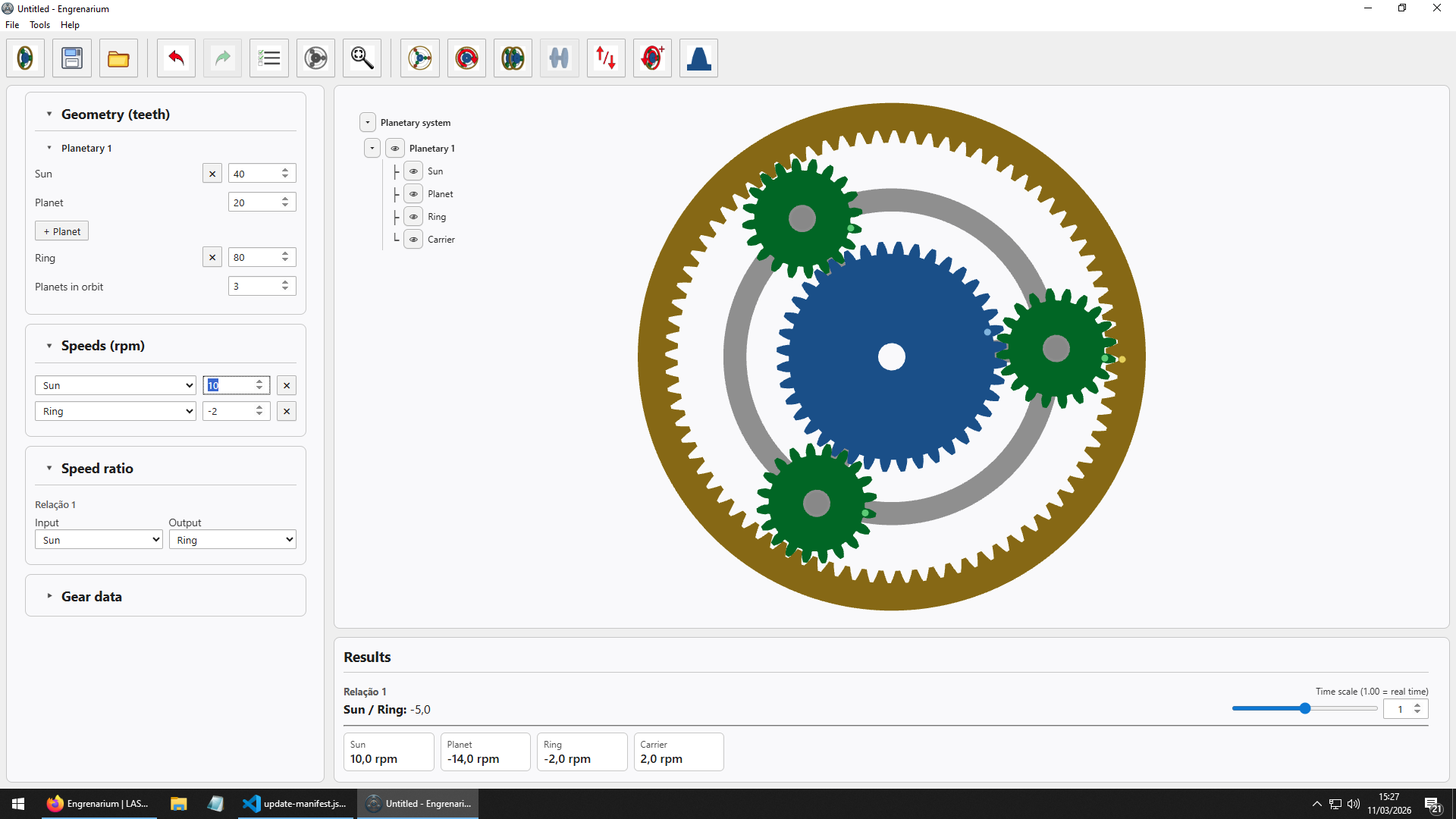

Screenshots
A quick visual preview of the Engrenarium interface, showing views and workflows currently available in the project.
Licensing
Licenses and pricing
Buy licenseEngrenarium is available in Free and Pro versions. The Free version covers essential usage, while the Pro version adds advanced capabilities, broader deployment options, and licensing plans for individuals and institutions.
What the Pro version adds
- Export of 3D models in STL and DXF formats.
- Export of simulation videos in AVI and WebM formats.
- Ability to save projects.
- Ability to store multiple operating conditions within a project (e.g., different gear states or gear ratios).
- Support for multiple selectable gear ratios (Free version allows only one).
- Support for an unlimited number of planetary stages in a model. The Free version allows up to two.
- Support for an unlimited number of planet gears per planetary stage. The Free version allows up to two planets per stage.
- Ability to modify fundamental gear geometry parameters, including module, pressure angle, and helix angle.
- Ability to define independent gear parameters for each planetary stage.
All license prices below are listed in US dollars and grant perpetual access.
Para brasileiros, entre em contato para descontos na compra de licenças.
-
Individual Perpetual license valid for up to 1 computer.
US$ 50,00
-
Institutional - 5 computers Perpetual license valid for up to 5 different computers.
US$ 225,00
-
Institutional - 10 computers Perpetual license valid for up to 10 different computers.
US$ 400,00
-
Institutional - 25 computers Perpetual license valid for up to 25 different computers.
US$ 800,00
-
Institutional - 50 computers Perpetual license valid for up to 50 different computers.
US$ 1.250,00
